Key Attributes
Industry-specific Attributes
- Range of product Harmony Relay
- Relay type Multifunction control relay
- Product or component type Modular measurement and control relays
- Product specific application For 3-phase supply

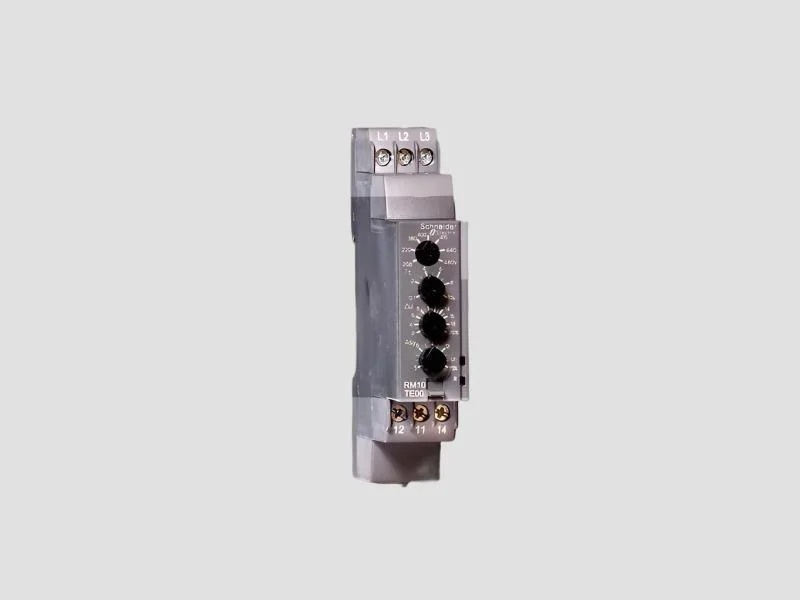

- Relay name RM10TE
- Relay monitored parameters Phase sequence Asymmetry Undervoltage and overvoltage in window mode Phase failure detection
- time delay Adjustable 0.1...10 s, +/- 10 % of the full scale value
- Switching capacity in VA 1250 VA
- Measurement range 183...528 V AC
- Reset time 1500 ms time delay
- Maximum switching voltage 250 V AC 250 V DC
- Minimum switching current 10 mA at 5 V DC
Other Attributes
- Maximum switching current 5 A AC 5 A DC
- Supply voltage limits 183…528 V AC
- Control circuit voltage limits - 12 % + 10 % Un
- Power consumption in VA 0…22 VA at 400 V AC 50 Hz
- control circuit frequency 50...60 Hz +/- 10 %
- Output contacts 1 C/O
- Nominal output current 5 A
- Hysteresis 2 %
- delay at power up 650 ms
- Maximum measuring cycle 150 ms measurement cycle as true rms value
- Threshold adjustment voltage 2...20 % of Un selected -2...-17 % in the range 220 V AC +2...+10 % in the range 480 V AC -2...-12 % in the range 208 V AC
- Voltage range 208...480 V phase to phase
