Products

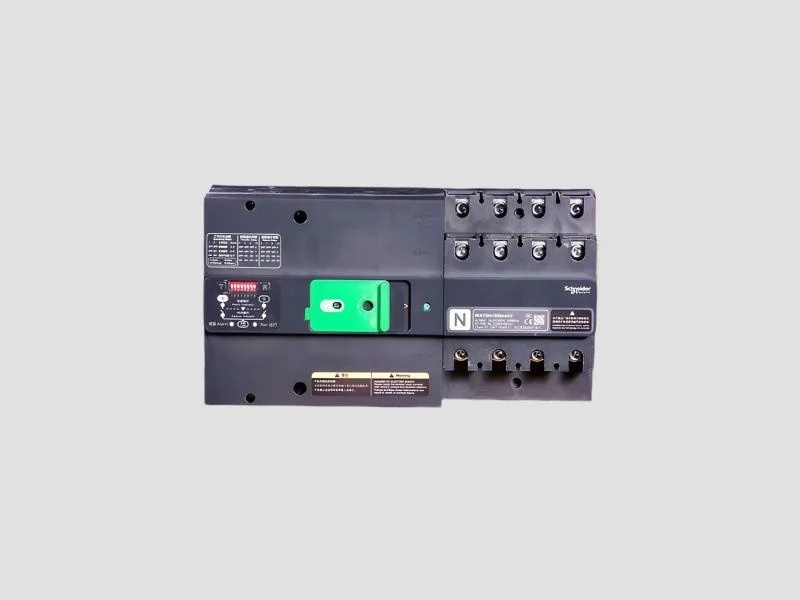

This rack mounted automatic transfer switch operates on AC networks at 50 or 60 Hz and supports secure screwed connections on both incoming and outgoing terminals. It features clear contact position indication and three defined contact positions for operational safety.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Range of product WATSN
- Device short name WATSN160
- Product or component type Transfer switch
- Device application Low voltage electrical distribution
- Poles description 4P
- Network type AC
- Network frequency 50/60 Hz
- Mounting mode Rack-mounted
- downside connection Screwed
- Upside connection Screwed
- Contact position indicator Yes
- [Icm] rated short-circuit making capacity 17 kA
Other Attributes
- Suitability for isolation Yes
- Number of contact position 3
- Control type A
- mounting support DIN rail Base
- transfer switch class PC
- utilisation category AC-33B
- Locking options description Keylock in OFF position
- [Ie] rated operational current 160 A
- product certifications CCC CE CB
- Standards GB/T 14048.1 GB/T 14048.11 IEC 60947-1 IEC 60947-6-1
- Pollution degree 3
- Ambient air temperature for operation -25…70 °C
This WATSN series transfer switch operates on AC networks at 50 or 60 Hz and supports screwed connections on both incoming and outgoing terminals for secure installation. It provides three distinct contact positions and a visible position indicator to enhance operational safety.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Range of product WATSN
- Device short name WATSN100
- Product or component type Transfer switch
- Device application Remote control
- Network type AC
- Network frequency 50/60 Hz
- Mounting mode Rack-mounted
- downside connection Screwed
- Upside connection Screwed
- Contact position indicator Yes
- [Icm] rated short-circuit making capacity 7.65 kA
- Suitability for isolation Yes
Other Attributes
- Number of contact position 3
- Control type R
- mounting support DIN rail Plate
- transfer switch class PC
- utilisation category AC-33B
- Locking options description Padlock in OFF position
- [Ie] rated operational current 63 A
- [Ui] rated insulation voltage 690 V
- [Uimp] rated impulse withstand voltage 6 kV
- Mechanical interlocking With mechanical interlocking
- Mechanical durability 10000 cycles
- Electrical durability 6000 cycles
This surface or flush mounted distribution board allows installers to configure modular devices of varying types and sizes based on load requirements. The enclosure is constructed using galvanized steel components with CRCA door and frame to ensure long service life and robust mechanical protection.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Product or Component Type Consumer Unit
- Brand Schneider Electric
- Range Acti9
- Product Name Flexi Tier PPI
- Device Application Distribution
- Colour White (RAL 9003)
- Enclosure Mounting Surface / Flush
- Number of Horizontal Rows 4
- Number of 18 mm Modules Per Row 16
- Total Number of 18 mm Modules 64
- Enclosure Description Double door enclosure
Other Attributes
- Door Opening Side Reversible
- Enclosure Material Galvanized steel box, galvanized steel chassis, galvanized steel DIN rail
- Provided equipment Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Wire set
- Height 740.6 mm external:
- Width 436 mm external:
- Depth 101.6 mm external:
- IP degree of protection IP43, AC122
- IK degree of protection IK09
- Standards IS 8623-1 IS 8623-3 IEC 61439-3
- Product certifications ERDA CPRI
This Acti9 SPN distribution board from Schneider Electric is supplied as a factory assembled metal enclosure with a double door design for enhanced safety and durability. It allows easy installation of incomer devices such as MCB, Isolator, RCCB, or RCBO based on system configuration.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- DB Type SPN
- Door type Double Door
- Enclosure Type Metal
- Incomer Type MCB/Isolator/RCCB/RCBO
- Incoming Slots 6
- IP Protection IP43
Other Attributes
- No. of modules 6
- No. of Way 6
- Other Details A9H
- Outgoing slots 18
- Total Slots 2 + 4
The Acti9 iAMP DIN rail ammeter measures alternating current in the range of 0 to 10 A and features a bright LED digital display with decimal precision. It is directly connected to the electrical network and is suitable for continuous monitoring of circuit current in panel boards.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Range Acti9
- Device short name iAMP
- Product or component type Ammeter
- Range compatibility Prisma Prisma P door Prisma Prisma G door
- Network type AC 50/60 Hz
- mounting support DIN rail
- Type of measurement Current
- [Us] rated supply voltage 230 AC at 50/60 Hz
- Power consumption in VA 0.3 VA
Other Attributes
- Power consumption in VA 0.3 VA
- 9 mm pitches 4
- Width 36 mm
- height 87 mm
- Depth 65 mm
- Connections - terminals Tunnel type terminal 2 cable(s) 2.5 mm²
- Standards EN 50081-1 IEC 61010-1 EN 50082-1
- Ambient air temperature for operation -20…50 °C
The DM1110 single phase ammeter from Schneider Electric’s EasyLogic basic meter range delivers precise current readings with Class 1.0 accuracy. Its 4 digit LED display ensures clear readability, while true RMS measurement enhances accuracy in fluctuating load conditions.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Brand Schneider Electric
- Product Name DM1110 Single Phase Ammeter
- Range EasyLogic Basic Meter Range
- Category Volt / Amp Meter
- Measurement Type Current
- Phase Single Phase
- Accuracy Class Class 1.0
- Measurement Method True RMS
- Display Type LED
- Display Digits 4 Digit
- Display Color Red
Other Attributes
- Resolution 0.1 %
- Digit Height 14 mm
- Segment Type 7 Segment
- Interface Port No Port
- User Interface Dual Function Key
- Setup Mode Auto exit from setup
- Mounting Type Panel Mount
- Indicator Feature Kilo indication LED
- Design Ergonomic compact design
- Country of Origin India
- Colour White
The Schneider Electric DM6300 VAF PF Meter is designed for accurate monitoring of key electrical parameters in industrial and commercial power systems. It measures voltage, current, frequency and power factor with Class 1.0 accuracy, ensuring dependable performance for energy management and panel applications.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Brand Schneider Electric
- Manufacturer Schneider Electric
- Country of Origin India
- Model number 30002566
- Number of Memory Sticks 1
- Item Weight 400 g
Other Attributes
- Product Dimensions 21 x 12 x 5 cm; 400 g
- Item model number 30002566
- Item Height 5 Centimeters
- Item Width 12 Centimeters
- Included Components 1 x DM6300 Cl1.0 with RS485 port
The Acti9 DPN Vigi RCBO is designed for complete circuit protection in low voltage distribution systems. It integrates thermal magnetic overcurrent protection and AC type earth leakage protection with instantaneous tripping for enhanced safety and reliability.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Product Type RCBO (Residual Current Breaker with Overcurrent Protection)
- Brand Schneider Electric
- Series / Range Acti9
- Model / Device Name DPN N Vigi
- SKU A9D31716
- Poles 3P + N
- Protected Poles 3
- Rated Current 16 A
- Tripping Curve C Curve
- Earth Leakage Sensitivity 30 mA
- Earth Leakage Type Earth Leakage Type
- Breaking Capacity 6 kA
Other Attributes
- Rated Operational Voltage 380–415 V AC
- Rated Insulation Voltage 440 V AC
- Impulse Withstand Voltage 4 kV
- Network Frequency 50/60 Hz
- Trip Technology Thermal-Magnetic
- Residual Current Technology Voltage Independent
- Mounting Type DIN Rail
- Width (9 mm Modules) 10
- Dimensions (W×H×D) 90 × 91 × 78.5 mm
- Color White (RAL 9003)
- Degree of Protection IP20 (IP40 in enclosure)
- Mechanical Endurance 20,000 cycles
The Schneider Electric Acti9 xSW Isolator is a 2-pole switch disconnector rated at 63A, engineered for dependable circuit isolation and manual switching operations. Its compact modular design allows easy installation on standard DIN rails while maintaining operational safety and durability.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Product Type Isolator / Switch Disconnector
- Brand Schneider Electric
- Series / Range Acti9
- Product Range ISW 40–125
- Model / SKU A9S2P063
- Poles 2 Pole (2P)
- Rated Current 63 A
- Rated Operational Voltage 240 V AC
- Utilisation Category AC-22
- Rated Breaking Capacity 2.5 kA
- Short Circuit Withstand 20 A
- Rated Insulation Voltage 500 V
Other Attributes
- Impulse Withstand Voltage 6 kV
- Electrical Endurance 30,000 cycles
- Mechanical Endurance 300,000 cycles
- Mounting Type DIN Rail Mount
- Modules Width 2 Modules (18 mm each)
- Device Application Isolation / Control
- Product Destination Distribution Board
- Degree of Protection IP20
- Protection in Enclosure IP40
- Operating Temperature -20°C to +50°C
- Storage Temperature -40°C to +70°C
- Pollution Degree 3

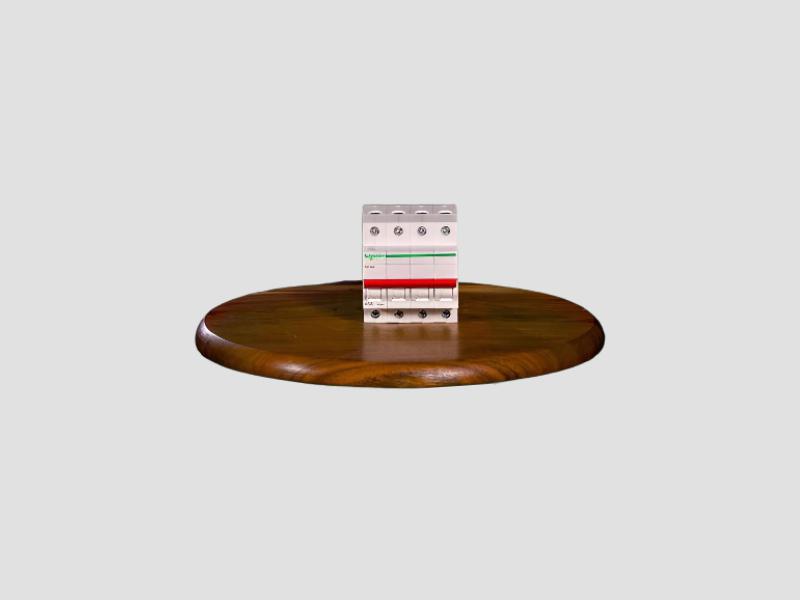

The Schneider Electric Acti9 SW Isolator is a four pole switch disconnector rated at 40A and 415V AC, suitable for control and safe isolation of power circuits. Its compact modular design supports DIN rail mounting, making it ideal for space-efficient panel layouts.
T/T,L/C,Credit Card,Cash
Key Attributes
Industry-specific Attributes
- Brand Schneider Electric
- Product Range Acti9
- Product Name Acti9 SW
- Product Type Switch Disconnector
- Device Application Control / Isolation
- Number of Poles 4 Pole
- Rated Current 40 A
- Rated Operational Voltage 415 V AC
- Frequency 50/60 Hz
- Utilisation Category AC-22A
- Mounting Type DIN Rail
- Control Type Toggle
Other Attributes
- Rated Insulation Voltage 500 V AC
- Impulse Withstand Voltage 4 kV
- Short Circuit Making Capacity 0.6 kA
- Short Time Withstand Current 480 A for 300 ms
- Module Width 8 Modules (9 mm each)
- Degree of Protection IP20, IP40 in enclosure
- Mechanical Endurance 20000 cycles
- Electrical Endurance 10000 cycles
- Terminal Type Tunnel type terminals
- Compatible Conductor Rigid and Flexible conductors
- Product Color White
- Operating Temperature -5°C to 55°C
